Radiation transfer in plant canopies

How does light interact with plants?

Radiation transfer in plant canopies

Transmission of solar radiation in a foggy West Coast Forest

One of our applications in forest and agricultural climatology is themodelling and measurement of short-wave irradiance at the ground after passing through Earth’s atmosphere.

Lecture Review Quiz (iClicker)

We have a lecture review quiz this Friday (September 29th).

A - True

B - False

Learning Objectives

• Describe how is short-wave radiation is distributed within a plant canopy.
• Explain how different wavelengths behave differently within the canopy.
• Understand how radiation distribution affect photosynthesis in a plant canopy.

Beer’s Law

Beer’s Law describes the attenuation (reduction in flux density) of a beam of radiation through a homogeneous medium.

\[ R_x = R_0 e^{-k\mu} \qquad(1)\]

• \(\mu\) is the attenuation coefficient
  • Combination of absorptance and reflectance
  • Will vary with \(\lambda\)

Figure 1: Beam attenuation as a function of distance

ALERT: a new “law” to be added to your growing list of radiation laws! Note: dz simply refers to a thickness or depth of some material it could be air, water, glass, plastic or in our case the depth of plant canopy.

Beer’s Law

Strictly speaking - the law only applies to homogenous media.

• Attenuation will vary with because composition & density vary

Plant canopies are not homogenous

Here you can see how light changes as you go deeper into the canopy (i.e. as X gets bigger)

Beer’s Law

Strictly speaking - the law only applies to homogenous media.

• However, it measurements show it roughly applies in uniform canopies
  • e.g., grass

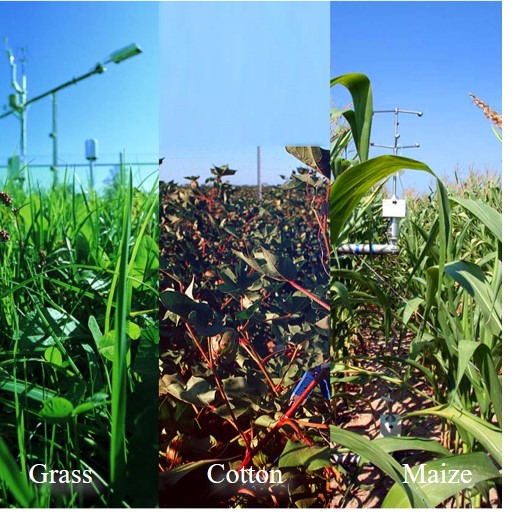

• We can develop empirical (observation based) relationships for different plant canopies

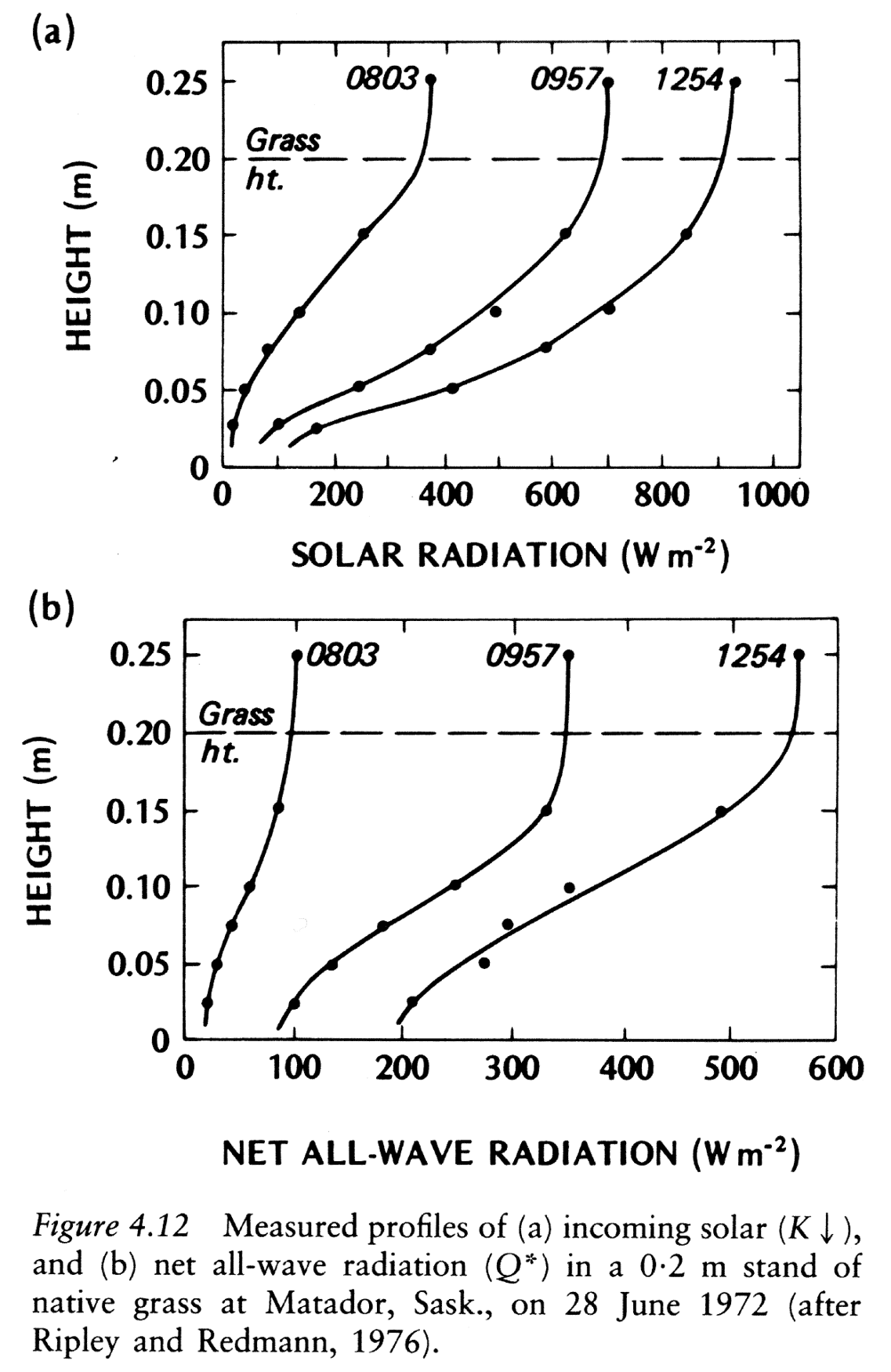

Measured vertical profiles of K↓ in a native grass stand.

Vertical distribution of folliage

Modifying Beer’s Law to apply to

• The main modification to overcome the non-uniformity of leaves is to replace distance (x) with the cumulative leaf area index (LAI).
• What is LAI?

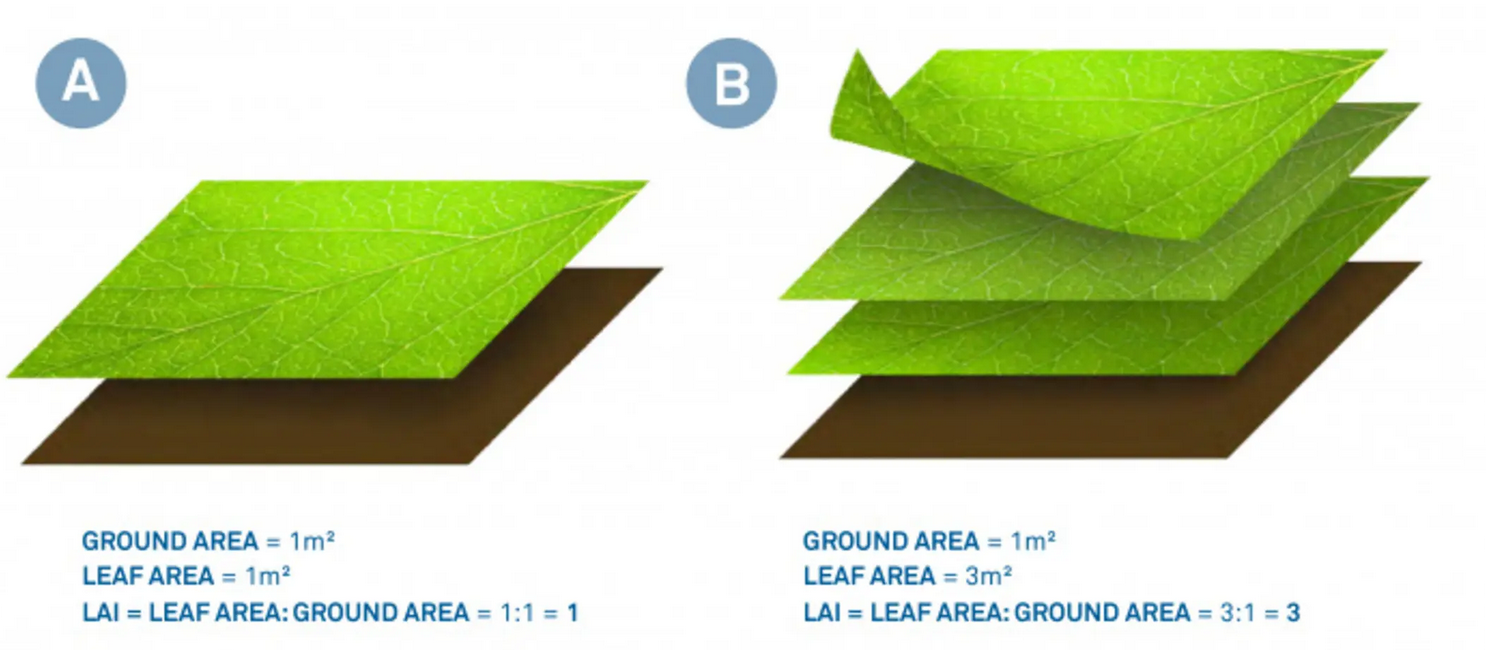

  • The leaf area index is the one-sided leaf (and stem) area per unit ground area.

Here we modify Beer’s Law to use Leaf area with depth, something that can be done for different canopies

It is defined as the one-sided green leaf (and stem) area per unit ground surface area (LAI = leaf area / ground area, m2 / m2) in broadleaf canopies.

Leaf Area Index

https://www.metergroup.com/en/meter-environment/education-guides/researchers-complete-guide-leaf-area-index-lai

Leaf Area Index

A single spruce branch

The same branch broken into its respective components

In conifers, three definitions for LAI have been used: Half of the total needle surface area per unit ground surface area [2] Projected (or one-sided, in accordance the definition for broadleaf canopies) needle area per unit ground area Total needle surface area per unit ground area [3]

Modifying Beer’s Law

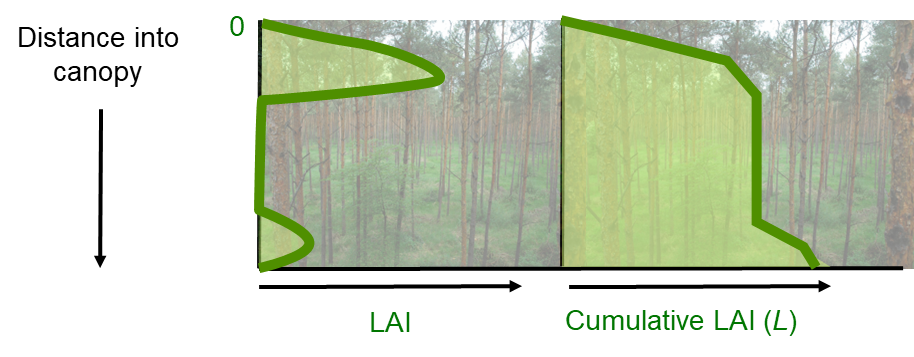

Cumulative LAI (L) = sum of LAI

• Integration of LAI through canopy starting at top of canopy

You can see how this might work and notice how we make the switch to a cumulative index as we go down into the canopy. In the next slide you will see how we can use this to modify the Beer’s Law equation with one that has L rather than distance x

Orientation of canopy leaf area

Pickleweed evolved to minimize LAI to help survive hostile conditions on exposed rocky coasts

Squash evolved to maximize LAI to help maximize energy capture and produce large fruits with many seeds

These two slides illustrate how the orientation of leaves is not really taken into account well

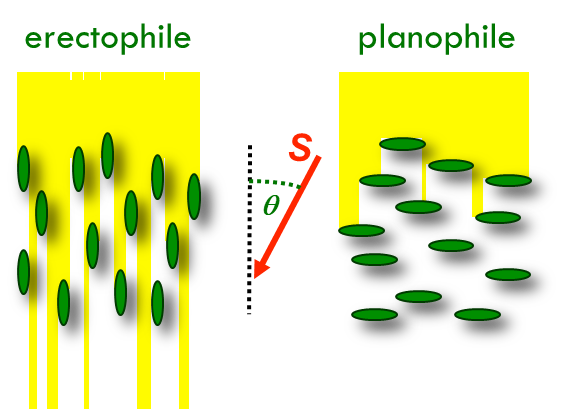

Leaf Orientation

The canopy attenuation coefficient is related to the orientation of the leaves in relation to the sun angle:

• Erectophile vs. planophile

In fact we take account of leaf orientation in the canopy extinction coefficient.

Spatial Heterogeneity

Consider the similarity/dissimilarity across space.

• A homogenous canopy will have a more even distribution across
  • The attenuation coefficient will be less variable
• A heterogeneous canopy will have a less even distribution across
  • The attenuation coefficient will be more variable

Spatial Heterogeneity

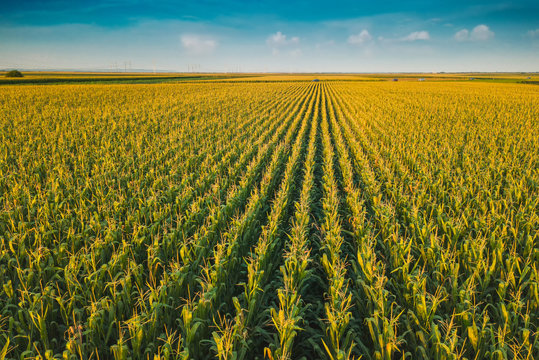

Homogenous, dense, evenly spaced corn limits canopy transmittance

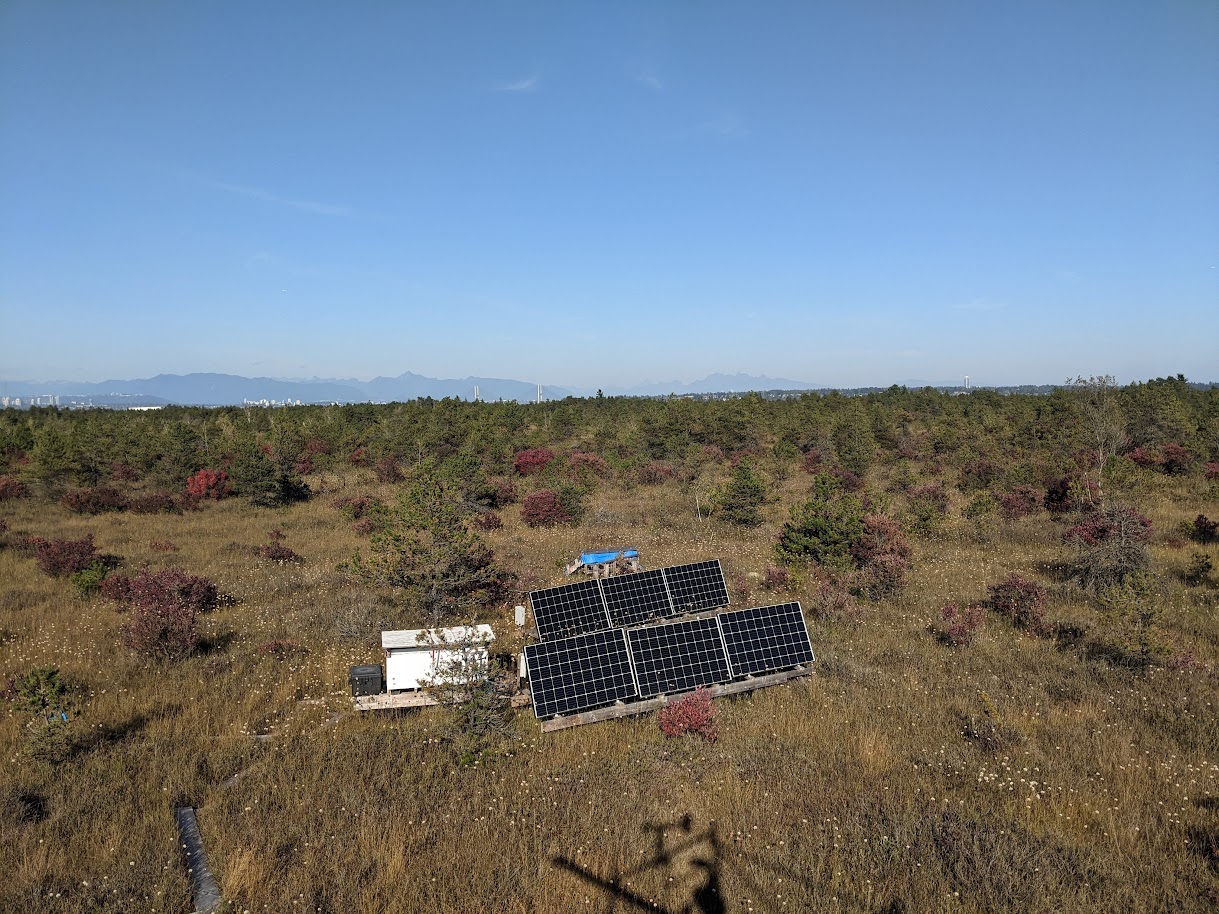

Heterogenous, clumpy vegetation in Burns Bog allows more light to reach the surface

Modifying Beer’s Law

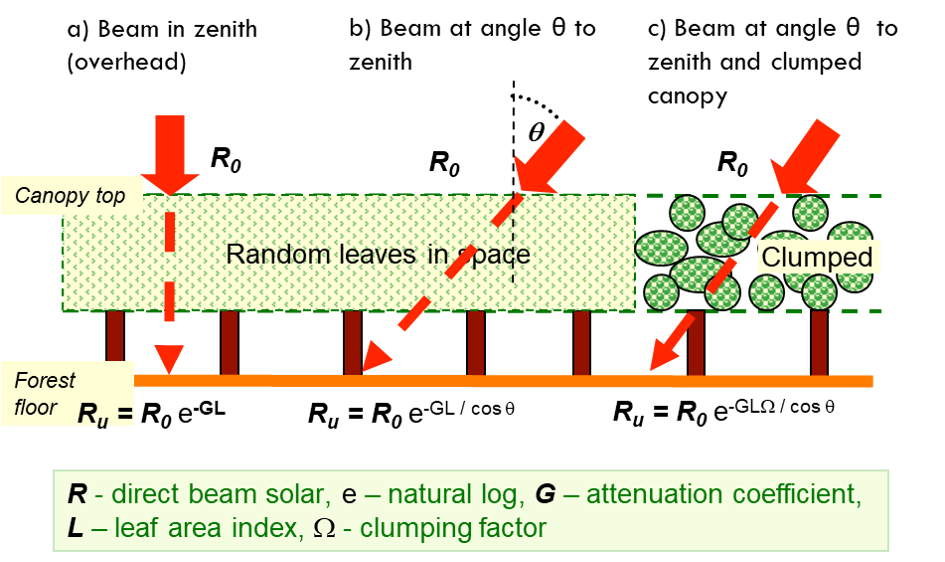

We rewrite Beer’s Law for solar radiation under a canopy as:

\[ R_u = R_0 e^{\frac{-GL\Omega}{cos\theta}} \qquad(2)\]

• \(R_0\) is irradiance above the canopy
• \(R_u\) is irradiance under the canopy
• \(L\) is the cumulative LAI
• \(G\) is the plant canopy attenuation coefficient
• \(\Omega\) is a clumping scale factor
• \(cos\theta\) accounts for the zenith angle

Canopy Transmission

Transmitted radiation will be a proportion of total incoming radiation.

\[ \tau_{\lambda} = \frac{R_{u\lambda}}{R_{0\lambda}} \qquad(3)\]

I do not need you to learn these equations. I just you to need to understand that these effects can be taken into account. Can invert to estimate LAI

Canopy Transmission (iClicker)

Can you have a negative value for transmitted radiation?

A - Yes

B - No

I do not need you to learn these equations. I just you to need to understand that these effects can be taken into account. Can invert to estimate LAI

Radiation beneath plant canopies

• Diffuse (d) radiation penetrates the canopy more effectively than direct (s) radiation
  • Ratio \(\frac{SW_d\downarrow}{SW_s\downarrow}\) increases with depth into canopy.
  • Scattering of direct radiation helps increase proportion of diffuse PAR in the canopy.
• \(\frac{NIR\downarrow}{PAR\downarrow}\) increases with depth into canopy.
  • The high PAR absorptivity of leaves in the upper canopy results in depleted PAR in the lower canopy.

Changes with seasons

Changes with seasons

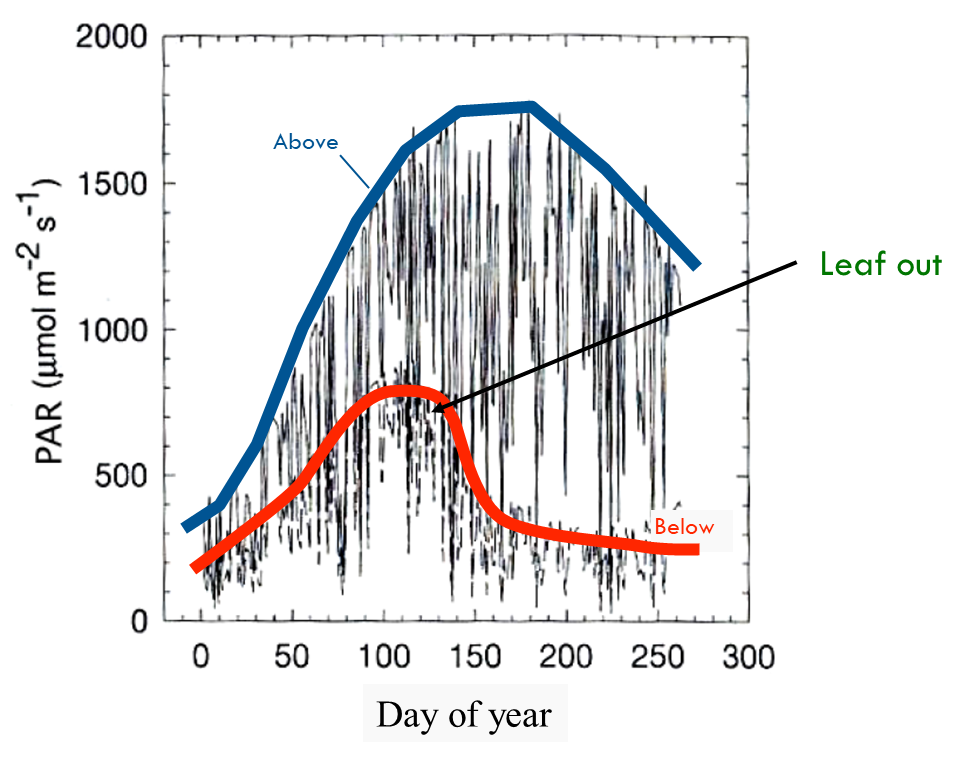

Radiation above & below boreal aspen canopy

Can you see in the two plots when the aspen forest comes into leaf?

Changes with seasons (iClicker)

Which bar on the graph (A or B) would represent the proportion of radiation reaching the floor of a deciduous forest in late winter?

Figure 2: Proportion of radiation reaching the forest floor

Emergence here means when the leaves come out. Note: the middle refers to PAR (Photosynthetically Active Radiation)

Radiation and understory

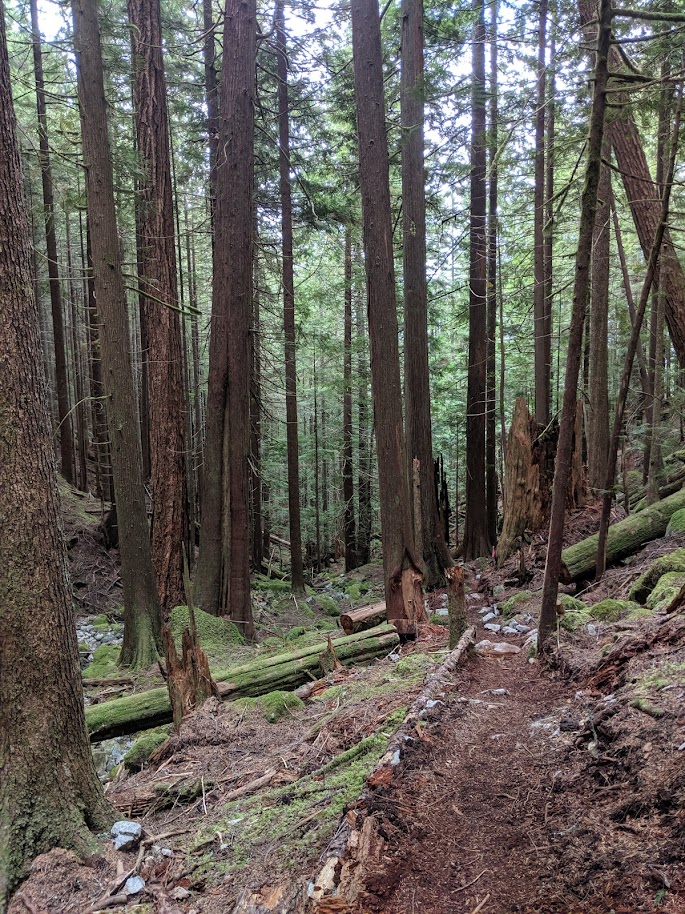

Dense hemlock stand little or no understory

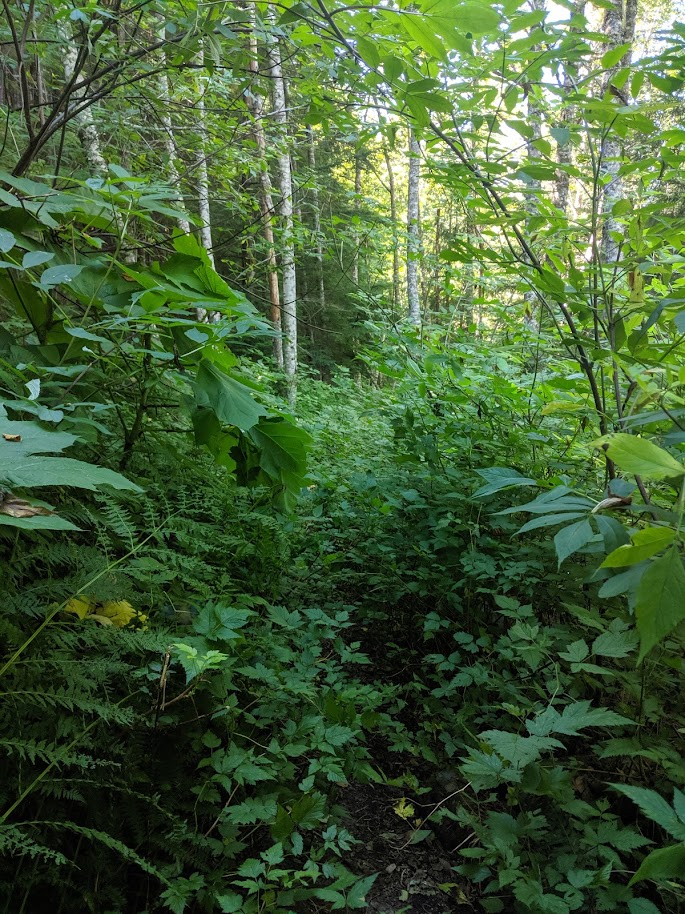

Open alder forest with lush understory

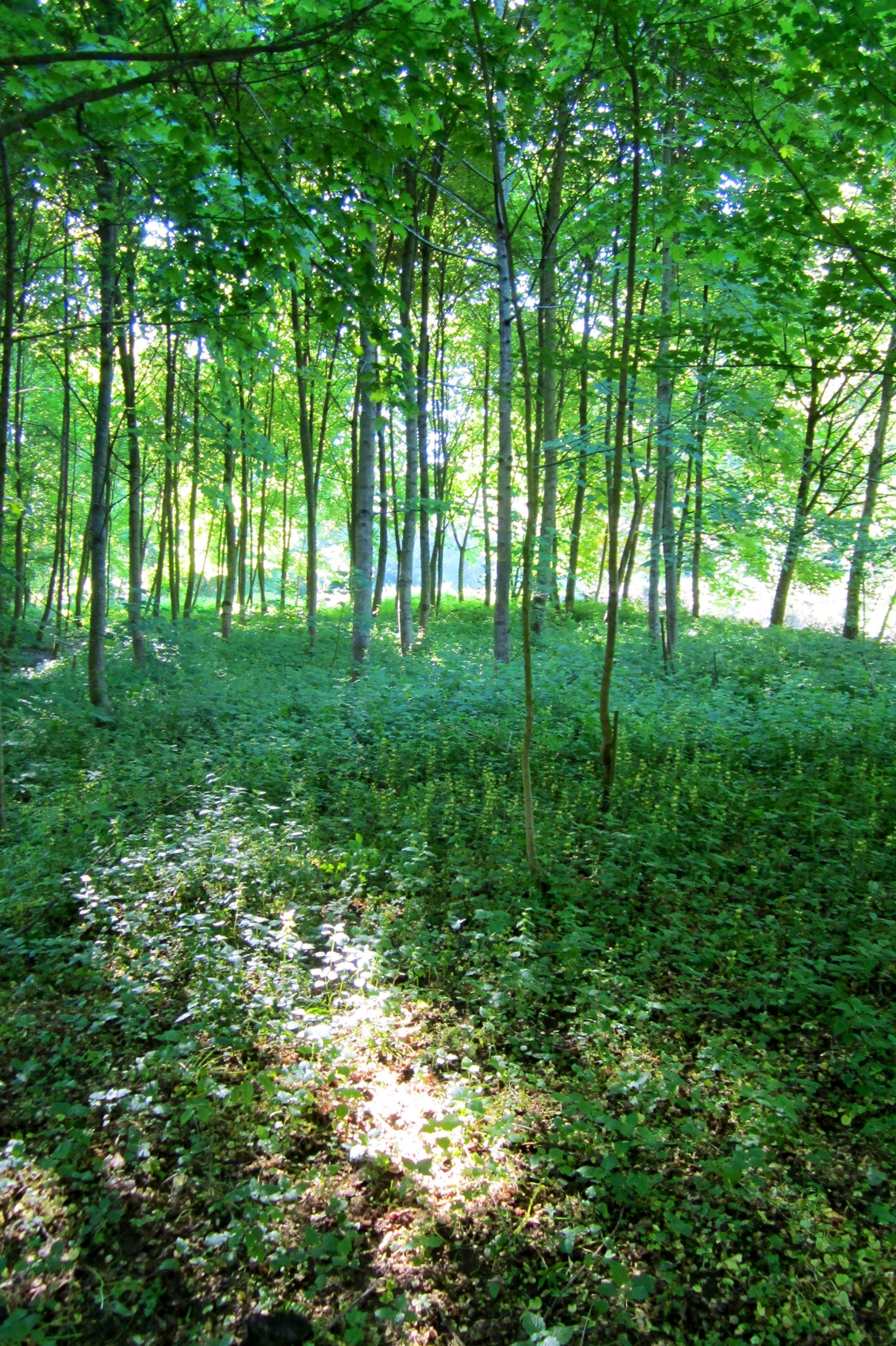

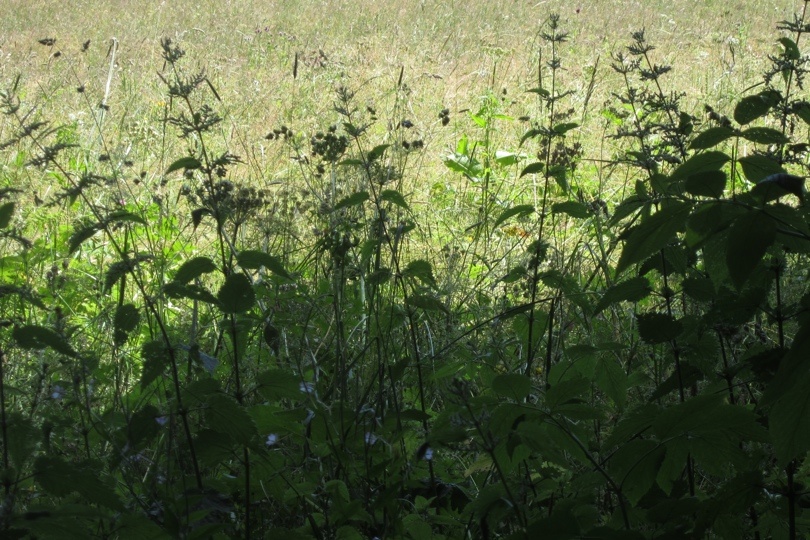

‘Sunflecks’

• Sunflecks move with position of sun
  • Rapid change from sunlit to shadowed

If you take walks in the forest you will be familiar with “sunflecks” where direct light can penetrate right to the ground through openings in the canopy.

Temporally Variability

Canopy Position & Photosynthesis

Figure 3: Rates of CO₂ uptake (photosynthesis) at different light levels for different species in a forest

This graph really just illustrates that understory plants (the red symbols that include ferns and salal) are more efficient photosynthesisers at low amounts of PAR (the left side of the graph). Alternatively the trees (Green – Maples) do better with high amounts of PAR such as you find high up in the canopy.

Take home points

• Radiative transfer through plant canopies can be approximated using Beer’s Law using the cumulative Leaf Area Index (L) instead of the distance, plus path length and a clumping factor.
• Radiation within plant canopies is not uniformly distributed in space, time (‘sunflecks’) and with regard to spectral characteristics.
• We can use radiative transfer theory to infer the LAI of a stand if we measure short-wave radiation transmission.
